Name: JC Valves stainless steel ball valve 530IIT + SA/NA electric actuator
Brand: JC VALVES
SKU: 3559
Price: 582.11428571429 EUR
Availability: InStock

JC Valves stainless steel ball valve 530IIT + SA/NA electric actuator

€582.11 (excl. btw)

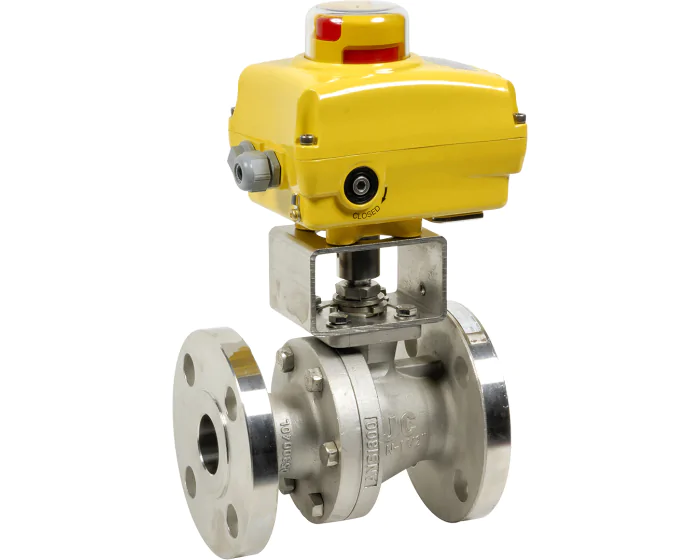

The JC 530IIT ball valve has a CF8M stainless steel body and ball, PTFE seats. It is actuated with an SA/NA electric actuator. PS: 50 bar, TS: 230°C. Flanges ANSI300 RF.

In stock Subject prior to sales
Categories : Kogelkranen

Documenten:

Technical datasheet	Download
Technical datasheet FR	Download

Description
Technical Specifications

Specification	Value
Option certificate 3.1	Yes
Maximum delta P (bar)	10
Shaft/stem matérial	Stainless steel 316
Manual override	By key
Declutchable	Yes
DN	DN15 - 1/2''
Duty service	S4 duty service - 50%
Face to Face (mm)	140.0
Protection index (IP)	IP 67
Torque limiter	No
Recommended location	Outdoor
Body material	Stainless steel CF8M (1.4408)
Number of ways	2
Bore	Full
Packing gland	Graphite
PS (bar)	50
Power (W)	18
Connections	Flanged #300 PN50
Anti-condensation heater	Standard
Positive safety	No
Function	On-off
Electric actuator type	SA 03
Electric actuator series	SA/NA series
Seats	PTFE
Operating time (s)	12.0
Voltage	230 V AC
TS max (°C)	230
TS min (°C)	-50
Ball valve design	2-piece body
Warranty period	1 year
CE	Excluded (Article 4. §3)
Range	JC Valves
Fire safe	Yes

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
3560	Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' SA 03	530IIT015023000	S1003704	€582.11 (excl. btw)	add to cart
3561	Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' SA 03	530IIT020023000	S1003705	€628.19 (excl. btw)	add to cart
3562	Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' SA 03	530IIT025023000	S1003706	€641.36 (excl. btw)	add to cart
3563	Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN50 - 2'' NA 09	530IIT050023120	S1003708	€1,661.23 (excl. btw)	add to cart
3564	Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN80 - 3'' NA 28	530IIT080023150	S1003709	€2,729.49 (excl. btw)	add to cart
3565	Flanged #300 PN50 Stainless steel CF8M (1.4408) Full 2-piece body DN100 - 4'' NA 38	530IIT100023160	S1003710	€3,840.01 (excl. btw)	add to cart
